Deflashing and Deburring Equipment
Batch Deflashing and Deburring Systems | Super Shotboy Series ®
Nitrofreeze is proud to offer the SUPER SHOTBOY® line of batch cryogenic deburring and deflashing systems. The SUPER SHOTBOY® (SSB) systems are designed and built to meet the most exacting demands of the industry. These machines offer high productivity with a significant reduction in operational costs. Combined with the variability to meet a wide range of materials and sizes, the SSB line is quickly becoming a favorite of plastic and rubber molders and machiners alike.
Features
▻Variable cycle parameters including temperature, time, tumble speed and media velocity
▻Memory capacity for up to 9999 on board programs
▻Throw wheel speeds of 20,000 RPM’s
▻▻ Runs parts with shorter cycle times than industry standards
▻▻Capable of throwing smaller particles faster to clean small delicate inner and outer diameter surfaces.
▻Fully insulated polyurethane foam chamber
SHOTBOY | SB-10 Table Top™ (ELECTRIC)
SB-10 Table Top™ (ELECTRIC) CRYOGENIC DEFLASHING & DEBURRING SYSTEMS FREE SAMPLE DEFLASHING
FEATURES
ADVANTAGES
APPLICATIONS
|
Patents Pending  |
| Width | 38.62″ |
| Height | 35.00″ |
| Depth | (Doors Closed) 24.40″ |
| Depth | (Doors Open) 48.22″ |
| Power Requirements: 120 VAC, 20 AMP, 50/60 HZ, grounded. | Media Throwing Wheel: 4″ Diameter with a speed range to 20,000 RPM for high velocity impact. Motor is an Electric Brushless/DC, with Direct Drive hook-up and matching Controller Board. | Parts Basket: (Stainless Steel) SB-10= 10″ dia. x 10″ deep Perforation is 0.250 Ø standard. |
| Refrigerant: Liquid Nitrogen at -320º F. at 25 PSIG maximum. | Gaseous Nitrogen: Using an ambient vaporizer (250 scfh) to create GN 2 for the media assist system. | Controls: Cycle timer, 0 to 60 minutes. Digital temperature controller with set point and actual temperature display. Throwing wheel speed control dial; digital readout tachometer for throwing wheel speed. Parts basket speed control dial. |
| Media Flow System: Gaseous Nitrogen or Clean/Dry Shop Air (30/35 PSIG). | Media Type: System can operate utilizing any plastic blast media. | Insulation: 2″ Thick rigid, high density polyurethane foam for cold containment around inner blast chamber. |
SUPER SHOTBOY™ (ELECTRIC) MODELS 12 and 16
FEATURES
ADVANTAGES
APPLICATIONS
|
Patents Pending  |
| Width | 44.25″ |
| Height | 67.75″ |
| Depth | (Doors Closed) 42.75″ |
| Depth | (Doors Open) 67.50″ |
| Width | 47.87″ |
| Height | 70.75″ |
| Depth | (Doors Closed) 43.75″ |
| Depth | (Doors Open) 73.00″ |
| Power Requirements: 220 VAC, 3 Phase 20 AMP, 50/60 HZ, grounded. | Media Throwing Wheel: 4″ Diameter with speed range to 20,000 RPM for high velocity impact. Motor is an Electric Brushless/DC, with Direct Drive hook-up and matching Controller Board. | Parts Basket: (Stainless Steel) SB-12 = 12″ dia. x 12″ deep SB-16 = 16″ dia. x 16″ deep Perforation is 0.250 Ø standard |
| Refrigerant: Liquid Nitrogen at -320º F. at 50 PSIG maximum. | Media/Flash Separator: Housed in the lower compartment for separating media, flash and fine particles. | Processor Controls: Programmable micro-processing computer with 9999 processing programs. All applicable functions displayed on the color monitor with bar code reader system. |
| Media Flow System: Gaseous Nitrogen or Clean/Dry Shop Air (30/35 PSIG) | Media Type: System can operate utilizing any plastic blast media. | Insulation: 2″ Thick rigid, high density polyurethane foam for cold containment around inner blast chamber. |
| Gaseous Nitrogen: Using an ambient vaporizer (500 scfh) to create GN 2 for the media assist system. |
SUPER SHOTBOY ® (ELECTRIC) MODEL 30
SUPER SHOTBOY ® (ELECTRIC) MODEL 30 CRYOGENIC DEFLASHING & DEBURRING SYSTEMS FREE SAMPLE DEFLASHING
FEATURES
ADVANTAGES
APPLICATIONS
|
Patents Pending
|
| Power Requirements: 220 VAC, 3 Phase 20 AMP, 50/60 HZ, grounded. | Media Throwing Wheel: 6″ Diameter with speed range to 20,000 RPM for high velocity impact. Motor is an Electric Brushless/DC, with Direct Drive hook-up and matching Controller Board. | Parts Basket: (Stainless Steel) Perforation is 0.375 Ø standard |
| Refrigerant: Liquid Nitrogen at -320º F. at 50 PSIG maximum. | Media/Flash Separator: Housed in the lower compartment for separating media, flash and fine particles. | Processor Controls: Programmable micro-processing computer with 9999 processing programs. All applicable functions displayed on the color monitor with bar code reader system. |
| Media Flow System: Gaseous Nitrogen or Clean/Dry Shop Air (40/45 PSIG) | Media Type: System can operate utilizing any plastic blast media. | Insulation: 2″ Thick rigid, high density polyurethane foam for cold containment around inner blast chamber. |
| Gaseous Nitrogen: Using an ambient vaporizer (500 scfh) to create GN 2 for the media assist system. |
Request a quote or consultation

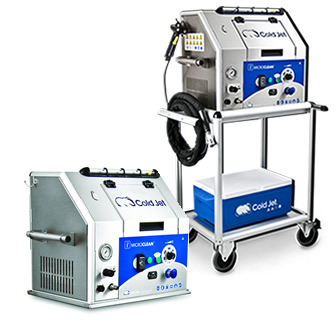

Dry Ice Deburring and Deflashing | i3 MicroClean System
When precision counts, the single hose electric i3 MicroClean featuring Cold Jet’s patented shaved dry ice technology is the perfect choice.
This environmentally responsible dry ice blasting system enables you to safely clean delicate surfaces and complex cavities and crevices that other machines can’t reach – all without surface abrasion, disassembly, or harmful secondary waste.
With the i3 MicroClean’s precision control you will be able to debur/deflash even the most delicate products. Plus, the robust chain drive provides ultimate reliability for even the most demanding environments.
Learn more about Dry Ice Deflashing or Dry Ice Deburring.
